Kubernetes基础概念

给出来源网址Kubernetes实战入门 · 语雀 (yuque.com) 图片不显示可以去原网站看

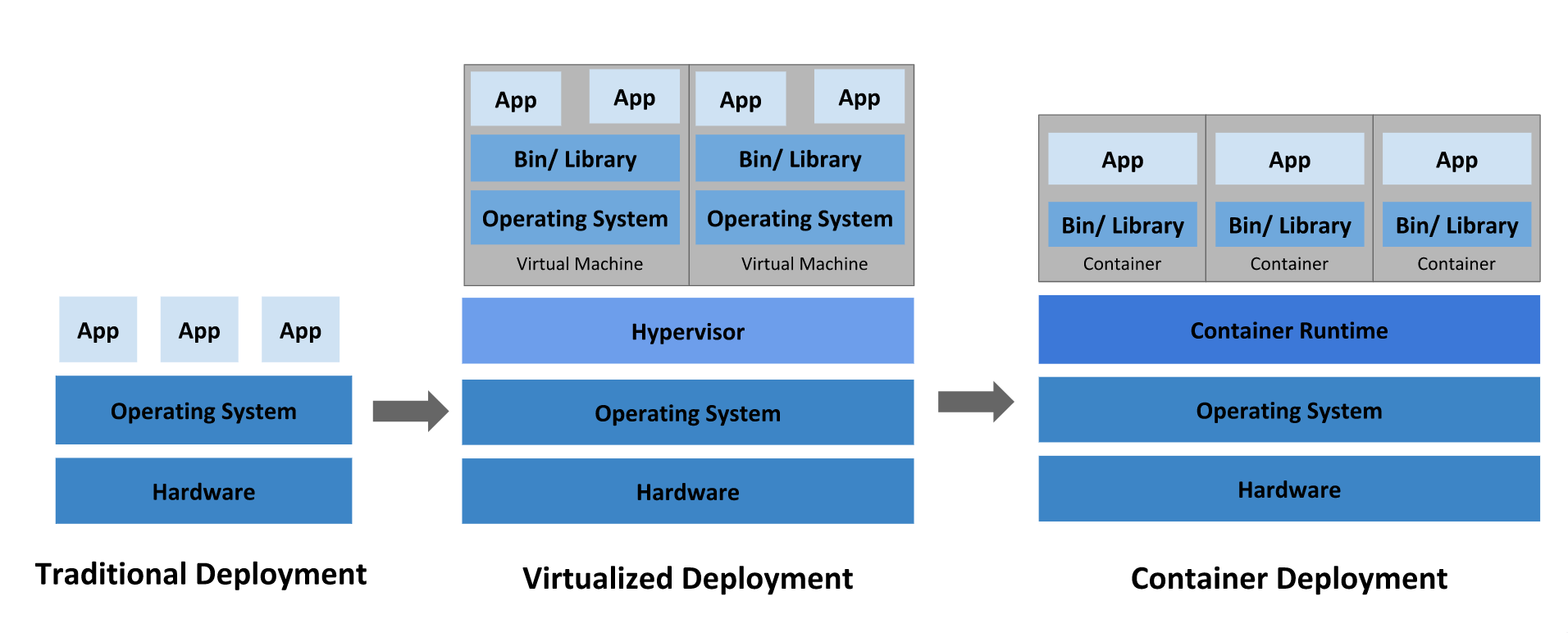

1、是什么

我们急需一个大规模容器编排系统

kubernetes具有以下特性：

服务发现和负载均衡
Kubernetes 可以使用 DNS 名称或自己的 IP 地址公开容器，如果进入容器的流量很大， Kubernetes 可以负载均衡并分配网络流量，从而使部署稳定。
存储编排
Kubernetes 允许你自动挂载你选择的存储系统，例如本地存储、公共云提供商等。
自动部署和回滚
你可以使用 Kubernetes 描述已部署容器的所需状态，它可以以受控的速率将实际状态更改为期望状态。例如，你可以自动化 Kubernetes 来为你的部署创建新容器，删除现有容器并将它们的所有资源用于新容器。
自动完成装箱计算
Kubernetes 允许你指定每个容器所需 CPU 和内存（RAM）。当容器指定了资源请求时，Kubernetes 可以做出更好的决策来管理容器的资源。
自我修复
Kubernetes 重新启动失败的容器、替换容器、杀死不响应用户定义的运行状况检查的容器，并且在准备好服务之前不将其通告给客户端。
密钥与配置管理
Kubernetes 允许你存储和管理敏感信息，例如密码、OAuth 令牌和 ssh 密钥。你可以在不重建容器镜像的情况下部署和更新密钥和应用程序配置，也无需在堆栈配置中暴露密钥。

*Kubernetes 为你提供了一个可弹性运行分布式系统的框架。 Kubernetes 会满足你的扩展要求、故障转移、部署模式等。例如，Kubernetes 可以轻松管理系统的 Canary 部署。*

2、架构

1、工作方式

Kubernetes Cluster = N Master Node + N Worker Node：N主节点+N工作节点； N>=1

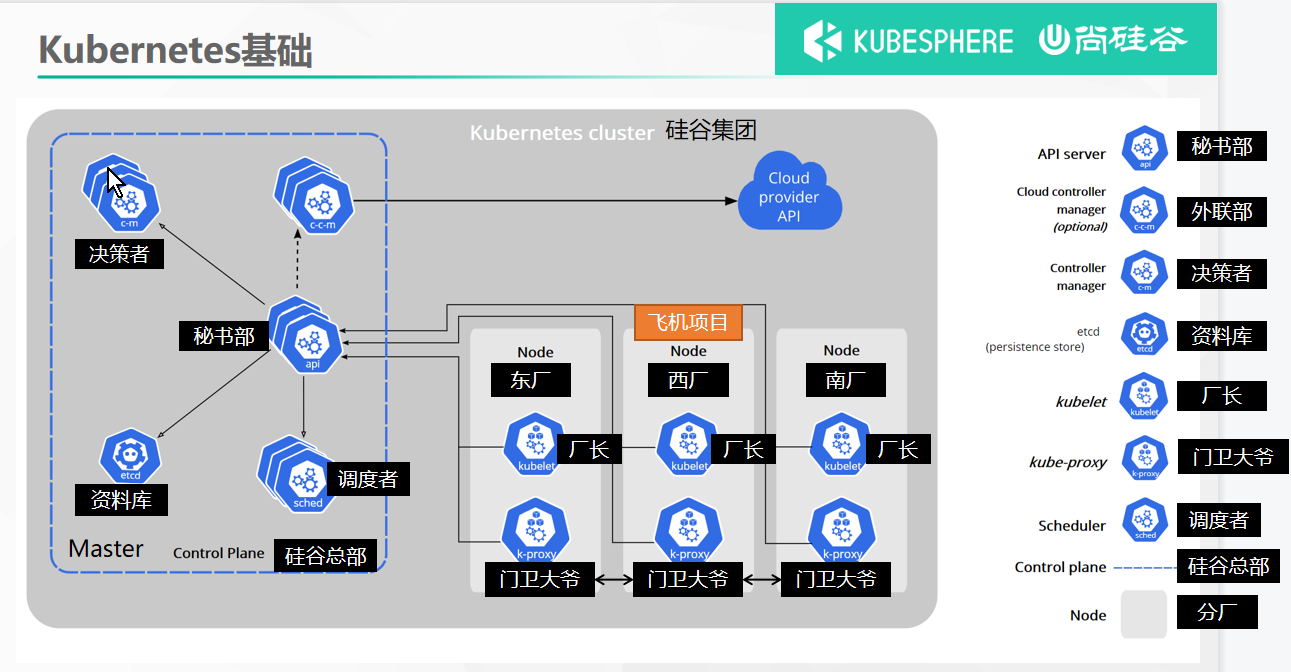

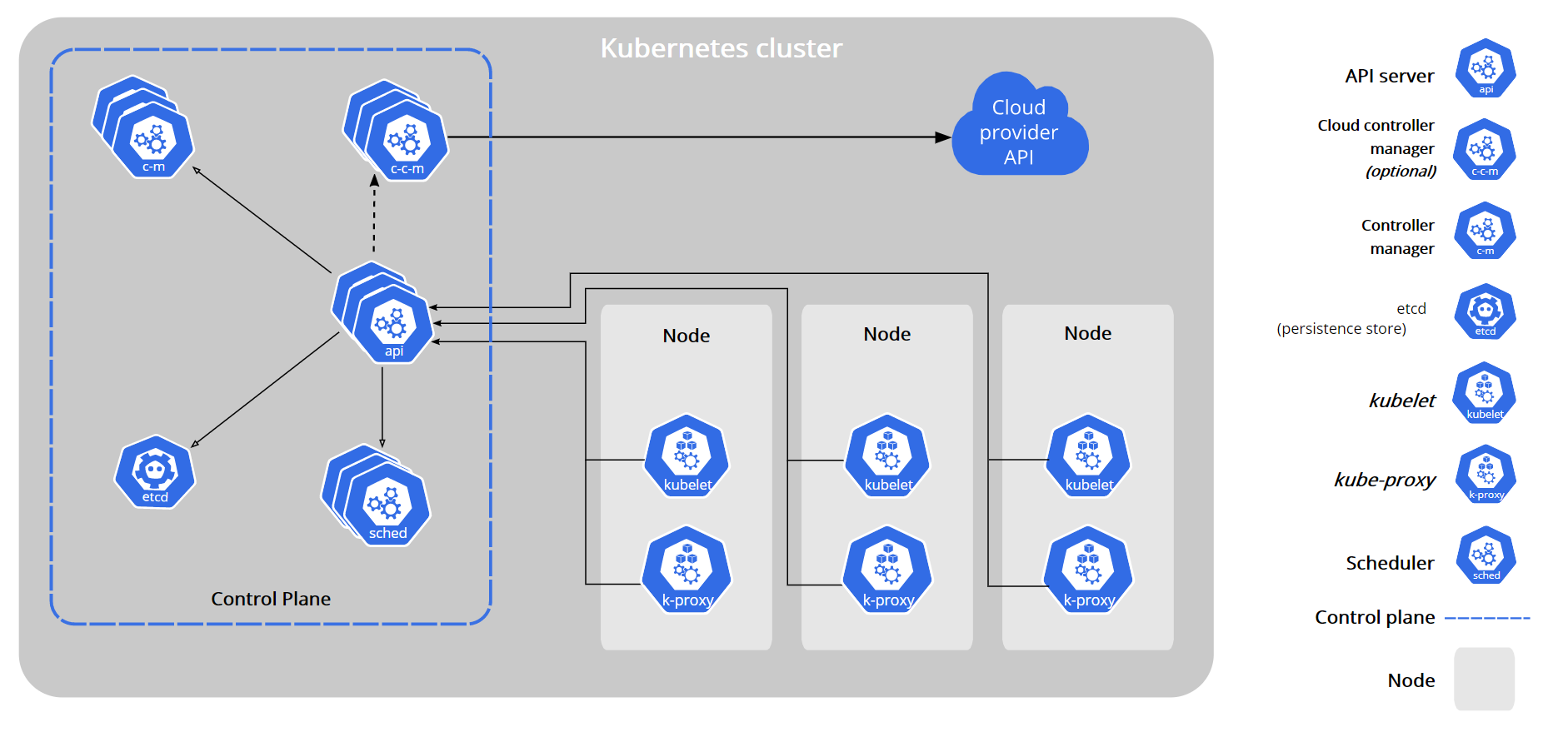

2、组件架构

1、控制平面组件（Control Plane Components）

控制平面的组件对集群做出全局决策(比如调度)，以及检测和响应集群事件（例如，当不满足部署的 replicas 字段时，启动新的 pod）。

控制平面组件可以在集群中的任何节点上运行。然而，为了简单起见，设置脚本通常会在同一个计算机上启动所有控制平面组件，并且不会在此计算机上运行用户容器。请参阅使用 kubeadm 构建高可用性集群中关于多 VM 控制平面设置的示例。

kube-apiserver

API 服务器是 Kubernetes 控制面的组件，该组件公开了 Kubernetes API。 API 服务器是 Kubernetes 控制面的前端。

Kubernetes API 服务器的主要实现是 kube-apiserver。 kube-apiserver 设计上考虑了水平伸缩，也就是说，它可通过部署多个实例进行伸缩。你可以运行 kube-apiserver 的多个实例，并在这些实例之间平衡流量。

etcd

etcd 是兼具一致性和高可用性的键值数据库，可以作为保存 Kubernetes 所有集群数据的后台数据库。

您的 Kubernetes 集群的 etcd 数据库通常需要有个备份计划。

要了解 etcd 更深层次的信息，请参考 etcd 文档。

kube-scheduler

控制平面组件，负责监视新创建的、未指定运行节点（node）的 Pods，选择节点让 Pod 在上面运行。

调度决策考虑的因素包括单个 Pod 和 Pod 集合的资源需求、硬件/软件/策略约束、亲和性和反亲和性规范、数据位置、工作负载间的干扰和最后时限。

kube-controller-manager

在主节点上运行控制器的组件。

从逻辑上讲，每个控制器都是一个单独的进程，但是为了降低复杂性，它们都被编译到同一个可执行文件，并在一个进程中运行。

这些控制器包括:

节点控制器（Node Controller）: 负责在节点出现故障时进行通知和响应
任务控制器（Job controller）: 监测代表一次性任务的 Job 对象，然后创建 Pods 来运行这些任务直至完成
端点控制器（Endpoints Controller）: 填充端点(Endpoints)对象(即加入 Service 与 Pod)
服务帐户和令牌控制器（Service Account & Token Controllers）: 为新的命名空间创建默认帐户和 API 访问令牌

cloud-controller-manager

云控制器管理器是指嵌入特定云的控制逻辑的控制平面组件。云控制器管理器允许您链接集群到云提供商的应用编程接口中，并把和该云平台交互的组件与只和您的集群交互的组件分离开。

cloud-controller-manager 仅运行特定于云平台的控制回路。如果你在自己的环境中运行 Kubernetes，或者在本地计算机中运行学习环境，所部署的环境中不需要云控制器管理器。

与 kube-controller-manager 类似，cloud-controller-manager 将若干逻辑上独立的控制回路组合到同一个可执行文件中，供你以同一进程的方式运行。你可以对其执行水平扩容（运行不止一个副本）以提升性能或者增强容错能力。

下面的控制器都包含对云平台驱动的依赖：

节点控制器（Node Controller）: 用于在节点终止响应后检查云提供商以确定节点是否已被删除
路由控制器（Route Controller）: 用于在底层云基础架构中设置路由
服务控制器（Service Controller）: 用于创建、更新和删除云提供商负载均衡器

2、Node 组件

节点组件在每个节点上运行，维护运行的 Pod 并提供 Kubernetes 运行环境。

kubelet

一个在集群中每个节点（node）上运行的代理。它保证容器（containers）都运行在 Pod 中。

kubelet 接收一组通过各类机制提供给它的 PodSpecs，确保这些 PodSpecs 中描述的容器处于运行状态且健康。 kubelet 不会管理不是由 Kubernetes 创建的容器。

kube-proxy

kube-proxy 是集群中每个节点上运行的网络代理，实现 Kubernetes 服务（Service）概念的一部分。

kube-proxy 维护节点上的网络规则。这些网络规则允许从集群内部或外部的网络会话与 Pod 进行网络通信。

如果操作系统提供了数据包过滤层并可用的话，kube-proxy 会通过它来实现网络规则。否则， kube-proxy 仅转发流量本身。

3、kubeadm创建集群

请参照以前Docker安装。先提前为所有机器安装Docker

docker安装

安装命令：
（卸载之前的版本）：
sudo yum remove docker \
                  docker-client \
                  docker-client-latest \
                  docker-common \
                  docker-latest \
                  docker-latest-logrotate \
                  docker-logrotate \
                  docker-engine

1.需要的安装包
 sudo yum install -y yum-utils \
  device-mapper-persistent-data \
  lvm2

2.设置镜像仓库
（国外的仓库，比较慢）
sudo yum-config-manager \
    --add-repo \
    https://download.docker.com/linux/centos/docker-ce.repo

（阿里云的镜像仓库，比较快，推荐使用）
sudo yum-config-manager \
    --add-repo \
    http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

# 更新yum软件包的索引
sudo yum makecache fast

3.安装docker最新版本的

sudo yum install docker-ce docker-ce-cli containerd.io

yum install -y docker-ce-20.10.7 docker-ce-cli-20.10.7 containerd.io-1.4.6

4.配置阿里云镜像服务
  1.sudo mkdir -p /etc/docker

  2.sudo tee /etc/docker/daemon.json <<-'EOF'
    {
      "registry-mirrors": ["https://4tbypv0e.mirror.aliyuncs.com"],
      "exec-opts": ["native.cgroupdriver=systemd"],
      "log-driver": "json-file",
      "log-opts": {
        "max-size": "100m"
      },
      "storage-driver": "overlay2"
    }
    EOF


sudo tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": ["https://4tbypv0e.mirror.aliyuncs.com"],
  "exec-opts": ["native.cgroupdriver=systemd"],
  "log-driver": "json-file",
  "log-opts": {
    "max-size": "100m"
  },
  "storage-driver": "overlay2"
}
EOF
   3.sudo systemctl daemon-reload

   4.sudo systemctl restart docker

docker卸载

停止docker运行：
systemctl stop docker
删除安装包:
yum remove docker-ce docker-ce-cli containerd.io
删除镜像，容器，配置文件等内容:
rm -rf /var/lib/docker

1、安装kubeadm

一台兼容的 Linux 主机。Kubernetes 项目为基于 Debian 和 Red Hat 的 Linux 发行版以及一些不提供包管理器的发行版提供通用的指令
每台机器 2 GB 或更多的 RAM （如果少于这个数字将会影响你应用的运行内存)
2 CPU 核或更多
集群中的所有机器的网络彼此均能相互连接(公网和内网都可以)
- 设置防火墙放行规则
节点之中不可以有重复的主机名、MAC 地址或 product_uuid。请参见这里了解更多详细信息。
- 设置不同hostname
开启机器上的某些端口。请参见这里了解更多详细信息。
- 内网互信
禁用交换分区。为了保证 kubelet 正常工作，你必须禁用交换分区。
- 永久关闭

1、基础环境

所有机器执行以下操作

#各个机器设置自己的域名
hostnamectl set-hostname xxxx


# 将 SELinux 设置为 permissive 模式（相当于将其禁用）
sudo setenforce 0
sudo sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config

#关闭swap
swapoff -a
sed -ri 's/.*swap.*/#&/' /etc/fstab

#允许 iptables 检查桥接流量
cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
br_netfilter
EOF

cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sudo sysctl --system

2、安装kubelet、kubeadm、kubectl

cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
   http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
exclude=kubelet kubeadm kubectl
EOF


sudo yum install -y kubelet-1.20.9 kubeadm-1.20.9 kubectl-1.20.9 --disableexcludes=kubernetes

sudo systemctl enable --now kubelet

kubelet 现在每隔几秒就会重启，因为它陷入了一个等待 kubeadm 指令的死循环

2、使用kubeadm引导集群

1、下载各个机器需要的镜像

sudo tee ./images.sh <<-'EOF'
#!/bin/bash
images=(
kube-apiserver:v1.20.9
kube-proxy:v1.20.9
kube-controller-manager:v1.20.9
kube-scheduler:v1.20.9
coredns:1.7.0
etcd:3.4.13-0
pause:3.2
)
for imageName in ${images[@]} ; do
docker pull registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/$imageName
done
EOF

chmod +x ./images.sh && ./images.sh

2、初始化主节点

#所有机器添加master域名映射，以下需要修改为自己的
echo "172.31.0.7  cluster-endpoint" >> /etc/hosts



#主节点初始化
kubeadm init \
--apiserver-advertise-address=172.31.0.3 \
--control-plane-endpoint=cluster-endpoint \
--image-repository registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images \ # 配置阿里云的镜像加速
--kubernetes-version v1.20.9 \    # kubernetes的版本
--service-cidr=10.96.0.0/16 \     # 给service提供一个网址
--pod-network-cidr=192.168.0.0/16 # 给pod提供一个网址

kubeadm init \
--apiserver-advertise-address=172.31.0.3 \
--control-plane-endpoint=cluster-endpoint \
--image-repository registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images \
--kubernetes-version v1.20.9 \
--service-cidr=10.96.0.0/16 \
--pod-network-cidr=192.168.0.0/16

#所有网络范围不重叠

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

You can now join any number of control-plane nodes by copying certificate authorities
and service account keys on each node and then running the following as root:

  kubeadm join cluster-endpoint:6443 --token t71ijf.1dovemcs27kj6z7q \
    --discovery-token-ca-cert-hash sha256:f38c8bd241f0551c322bd6060b9cb4a17a5a547b9d98a907626bc257383f508f \
    --control-plane

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join cluster-endpoint:6443 --token t71ijf.1dovemcs27kj6z7q \
    --discovery-token-ca-cert-hash sha256:f38c8bd241f0551c322bd6060b9cb4a17a5a547b9d98a907626bc257383f508f

#查看集群所有节点
kubectl get nodes

#根据配置文件，给集群创建资源
kubectl apply -f xxxx.yaml

#查看集群部署了哪些应用？
docker ps   ===   kubectl get pods -A

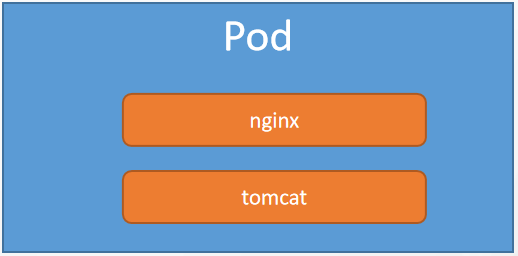

# 运行中的应用在docker里面叫容器，在k8s里面叫Pod
kubectl get pods -A

# 进入pod中
kubectl exec -it pod名字 -- /bin/bash

3、根据提示继续

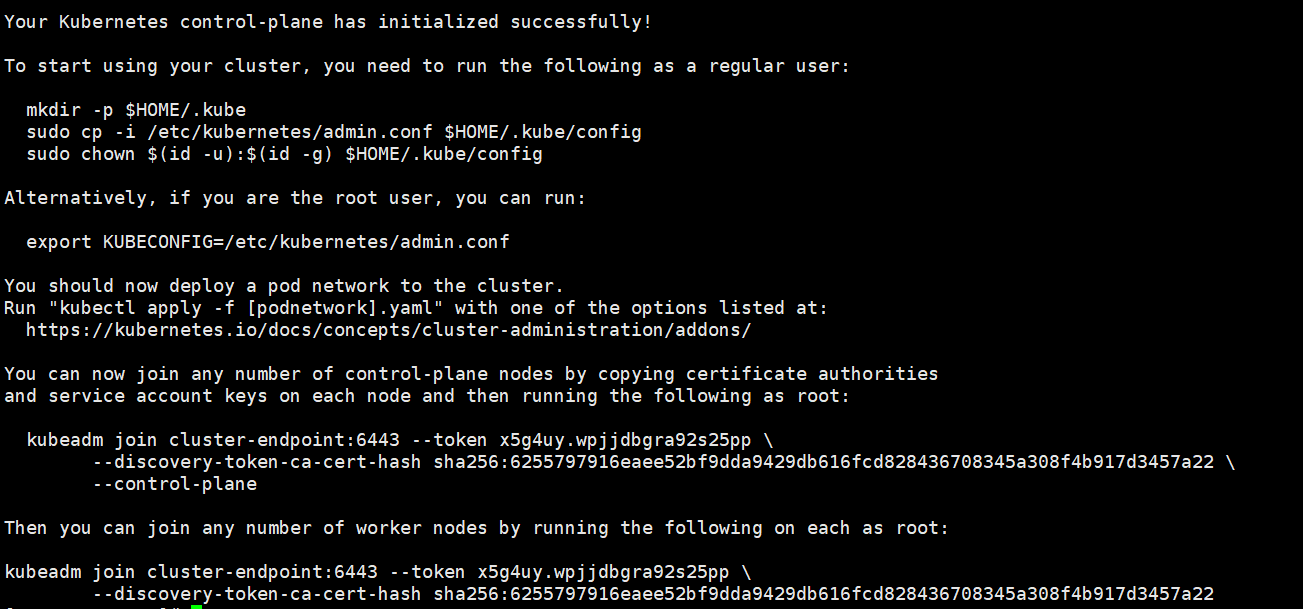

master成功后提示如下：

1、设置.kube/config

复制上面命令

2、安装网络组件

calico官网

1
2
3

curl https://docs.projectcalico.org/manifests/calico.yaml -O

kubectl apply -f calico.yaml

4、加入node节点

# 这个是自己主节点生成的令牌

kubeadm join cluster-endpoint:6443 --token x5g4uy.wpjjdbgra92s25pp \
	--discovery-token-ca-cert-hash sha256:6255797916eaee52bf9dda9429db616fcd828436708345a308f4b917d3457a22

	kubeadm join cluster-endpoint:6443 --token 7iddx8.3lm5h19gt0pavf50 \
    --discovery-token-ca-cert-hash sha256:38e403fc9a2f7554db2fc09c4304e08960a22391277962b511bc04fcbc02e396

新令牌

kubeadm token create –print-join-command

*高可用部署方式，也是在这一步的时候，使用添加主节点的命令即可*

5、验证集群

验证集群节点状态
- kubectl get nodes

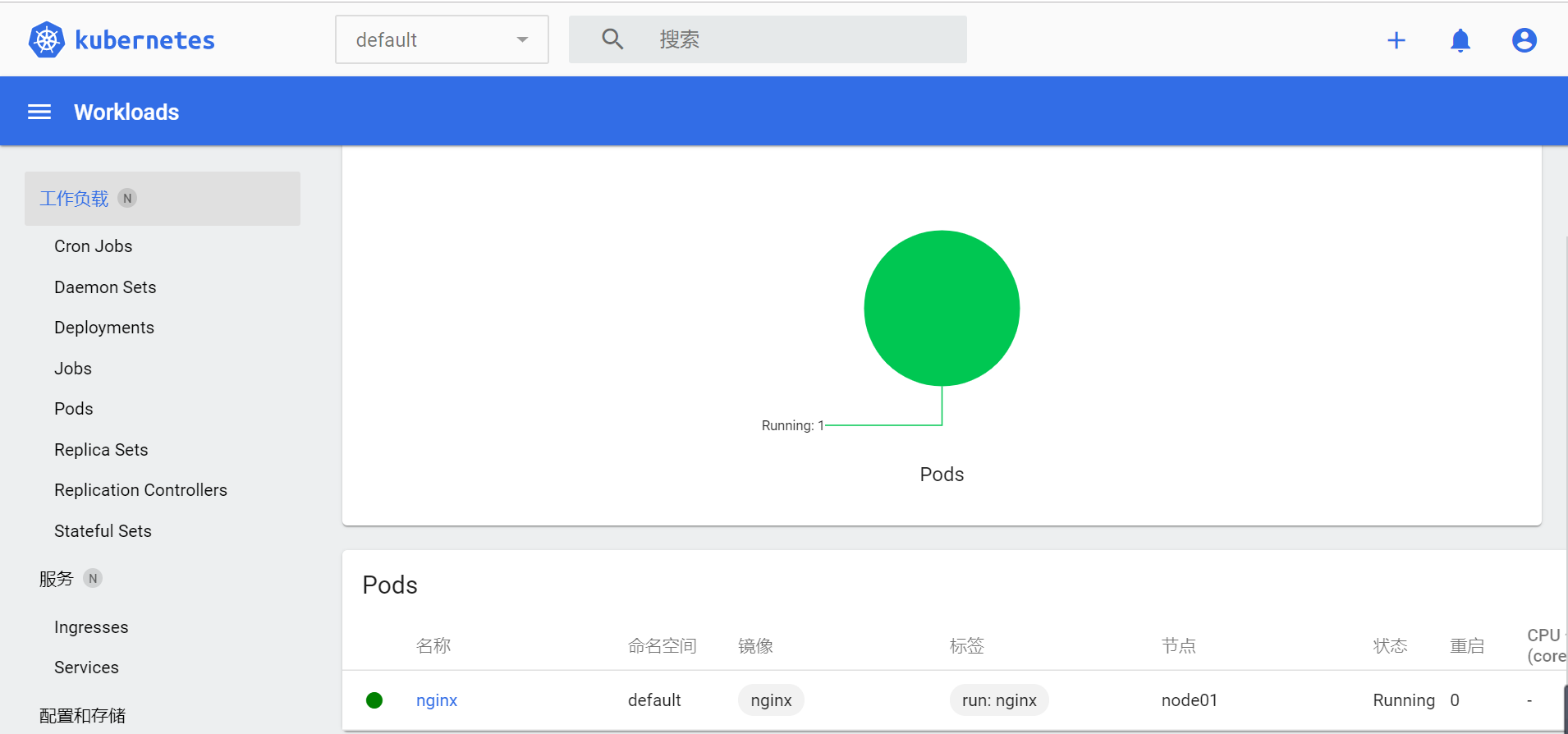

6、部署dashboard

1、部署

kubernetes官方提供的可视化界面

https://github.com/kubernetes/dashboard

1	kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml

yaml的内容，为了防止下载不下来，可以自行复制然后运行

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.3.1
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
      annotations:
        seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
    spec:
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.6
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

2、设置访问端口

1	kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard

type: ClusterIP 改为 type: NodePort

1 2	kubectl get svc -A \|grep kubernetes-dashboard ## 找到端口，在安全组放行

访问： https://集群任意IP:端口 https://139.198.165.238:32759

3、创建访问账号

#创建访问账号，准备一个yaml文件； vi dash.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard
kubectl apply -f dash.yaml

4、令牌访问

1 2	#获取访问令牌 kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token \| base64decode}}"

eyJhbGciOiJSUzI1NiIsImtpZCI6InpXSkU0TjhCUmVKQzBJaC03Nk9ES2NMZ1daRTRmQ1FMZU9rRUJ3VXRnM3MifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXgyczhmIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIzOTZmYjdlNS0wMjA2LTQxMjctOGQzYS0xMzRlODVmYjU0MDAiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.Hf5mhl35_R0iBfBW7fF198h_klEnN6pRKfk_roAzOtAN-Aq21E4804PUhe9Rr9e_uFzLfoFDXacjJrHCuhiML8lpHIfJLK_vSD2pZNaYc2NWZq2Mso-BMGpObxGA23hW0nLQ5gCxlnxIAcyE76aYTAB6U8PxpvtVdgUknBVrwXG8UC_D8kHm9PTwa9jgbZfSYAfhOHWmZxNYo7CF2sHH-AT_WmIE8xLmB7J11vDzaunv92xoUoI0ju7OBA2WRr61bOmSd8WJgLCDcyBblxz4Wa-3zghfKlp0Rgb8l56AAI7ML_snF59X6JqaCuAcCJjIu0FUTS5DuyIObEeXY-z-Rw

5、界面

可以通过dashboard来进行k8s的操作

Kubernetes核心实战

1、资源创建方式

命令行
YAML

2、Namespace

名称空间用来隔离资源

kubectl create ns hello
kubectl delete ns hello
apiVersion: v1
kind: Namespace
metadata:
  name: hello

3、Pod

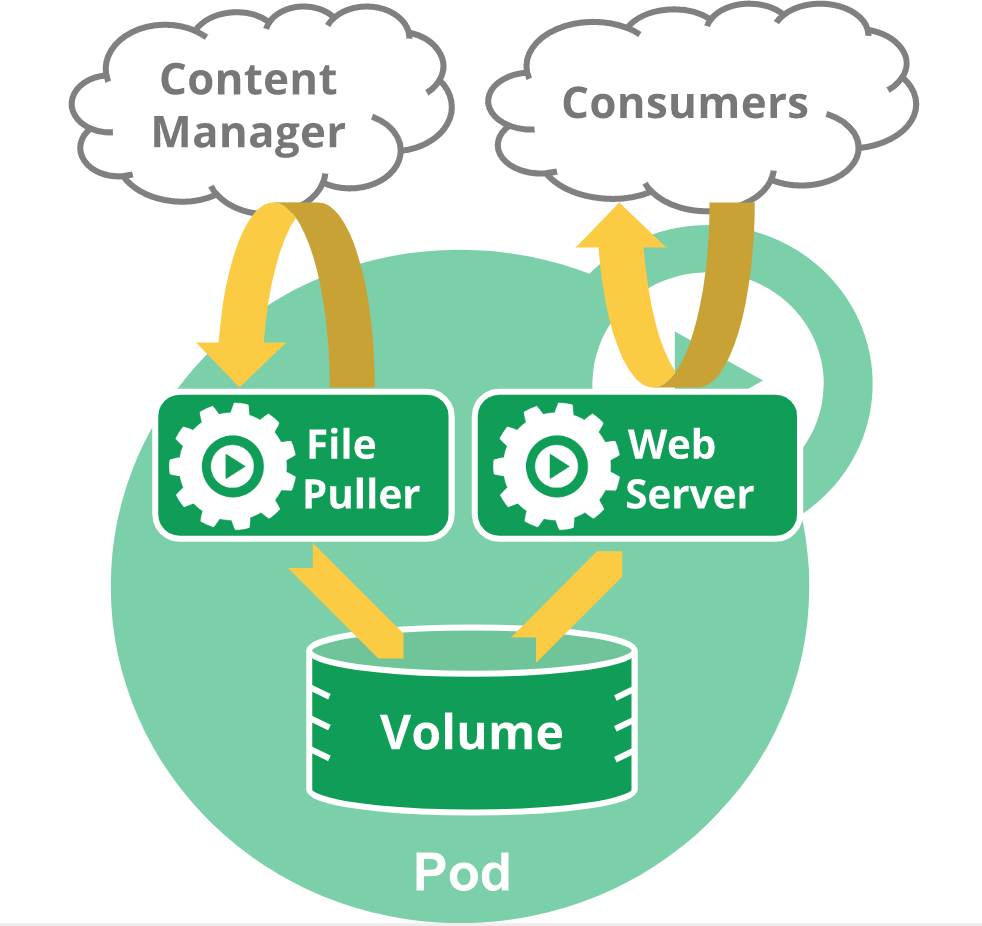

运行中的一组容器，Pod是kubernetes中应用的最小单位.

kubectl run mynginx --image=nginx

# 查看default名称空间的Pod
kubectl get pod
# 描述
kubectl describe pod 你自己的Pod名字
# 删除
kubectl delete pod Pod名字
# 查看Pod的运行日志
kubectl logs Pod名字

# 每个Pod - k8s都会分配一个ip
kubectl get pod -owide
# 使用Pod的ip+pod里面运行容器的端口
curl 192.168.169.136

# 集群中的任意一个机器以及任意的应用都能通过Pod分配的ip来访问这个Pod
apiVersion: v1
kind: Pod
metadata:
  labels:
    run: mynginx
  name: mynginx
#  namespace: default
spec:
  containers:
  - image: nginx
    name: mynginx

apiVersion: v1
kind: Pod
metadata:
  labels:
    run: myapp
  name: myapp
spec:
  containers:
  - image: nginx
    name: nginx
  - image: tomcat:8.5.68
    name: tomcat

*此时的应用还不能外部访问*

4、Deployment

控制Pod，使Pod拥有多副本，自愈，扩缩容等能力

# 清除所有Pod，比较下面两个命令有何不同效果？
kubectl run mynginx --image=nginx

kubectl create deployment mytomcat --image=tomcat:8.5.68
# 自愈能力

1、多副本

kubectl create deployment my-dep --image=nginx --replicas=3


apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  replicas: 3
  selector:
    matchLabels:
      app: my-dep
  template:
    metadata:
      labels:
        app: my-dep
    spec:
      containers:
      - image: nginx
        name: nginx


apiVersion: v1
kind: Pod
metadata:
  labels:
    run: mynginx
  name: mynginx
#  namespace: default
spec:
  containers:
  - image: nginx
    name: mynginx

2、扩缩容

kubectl scale --replicas=5 deployment/my-dep
kubectl edit deployment my-dep

#修改 replicas

3、自愈&故障转移

停机
删除Pod
容器崩溃
….

4、滚动更新

1 2	kubectl set image deployment/my-dep nginx=nginx:1.16.1 --record kubectl rollout status deployment/my-dep

1	# 修改 kubectl edit deployment/my-dep

5、版本回退

#历史记录
kubectl rollout history deployment/my-dep


#查看某个历史详情
kubectl rollout history deployment/my-dep --revision=2

#回滚(回到上次)
kubectl rollout undo deployment/my-dep

#回滚(回到指定版本)
kubectl rollout undo deployment/my-dep --to-revision=2

除了Deployment，k8s还有 StatefulSet 、DaemonSet 、Job 等类型资源。我们都称为 工作负载。

有状态应用使用 StatefulSet 部署，无状态应用使用 Deployment 部署

https://kubernetes.io/zh/docs/concepts/workloads/controllers/

5、Service

将一组 Pods 公开为网络服务的抽象方法。

#暴露Deploy
kubectl expose deployment my-dep --port=8000 --target-port=80

#使用标签检索Pod
kubectl get pod -l app=my-dep
apiVersion: v1
kind: Service
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  selector:
    app: my-dep
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 80

1、ClusterIP

# 等同于没有--type的  在内网中可以访问，外网不能访问
kubectl expose deployment my-dep --port=8000 --target-port=80 --type=ClusterIP
apiVersion: v1
kind: Service
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 80
  selector:
    app: my-dep
  type: ClusterIP

2、NodePort

# 在外网可以访问
kubectl expose deployment my-dep --port=8000 --target-port=80 --type=NodePort
apiVersion: v1
kind: Service
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 80
  selector:
    app: my-dep
  type: NodePort

NodePort范围在 30000-32767 之间

6、Ingress

1、安装

wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.47.0/deploy/static/provider/baremetal/deploy.yaml

#修改镜像
vi deploy.yaml
#将image的值改为如下值：
registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/ingress-nginx-controller:v0.46.0

# 检查安装的结果
kubectl get pod,svc -n ingress-nginx

# 最后别忘记把svc暴露的端口要放行

如果下载不到，用以下文件

apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx

---
# Source: ingress-nginx/templates/controller-serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
automountServiceAccountToken: true
---
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
data:
---
# Source: ingress-nginx/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
---
# Source: ingress-nginx/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - configmaps
      - pods
      - secrets
      - endpoints
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - configmaps
    resourceNames:
      - ingress-controller-leader-nginx
    verbs:
      - get
      - update
  - apiGroups:
      - ''
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
---
# Source: ingress-nginx/templates/controller-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-service-webhook.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  type: ClusterIP
  ports:
    - name: https-webhook
      port: 443
      targetPort: webhook
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-service.yaml
apiVersion: v1
kind: Service
metadata:
  annotations:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  type: NodePort
  ports:
    - name: http
      port: 80
      protocol: TCP
      targetPort: http
    - name: https
      port: 443
      protocol: TCP
      targetPort: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/component: controller
  revisionHistoryLimit: 10
  minReadySeconds: 0
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/component: controller
    spec:
      dnsPolicy: ClusterFirst
      containers:
        - name: controller
          image: registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/ingress-nginx-controller:v0.46.0
          imagePullPolicy: IfNotPresent
          lifecycle:
            preStop:
              exec:
                command:
                  - /wait-shutdown
          args:
            - /nginx-ingress-controller
            - --election-id=ingress-controller-leader
            - --ingress-class=nginx
            - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
            - --validating-webhook=:8443
            - --validating-webhook-certificate=/usr/local/certificates/cert
            - --validating-webhook-key=/usr/local/certificates/key
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            runAsUser: 101
            allowPrivilegeEscalation: true
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: LD_PRELOAD
              value: /usr/local/lib/libmimalloc.so
          livenessProbe:
            failureThreshold: 5
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          ports:
            - name: http
              containerPort: 80
              protocol: TCP
            - name: https
              containerPort: 443
              protocol: TCP
            - name: webhook
              containerPort: 8443
              protocol: TCP
          volumeMounts:
            - name: webhook-cert
              mountPath: /usr/local/certificates/
              readOnly: true
          resources:
            requests:
              cpu: 100m
              memory: 90Mi
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
        - name: webhook-cert
          secret:
            secretName: ingress-nginx-admission
---
# Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml
# before changing this value, check the required kubernetes version
# https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  name: ingress-nginx-admission
webhooks:
  - name: validate.nginx.ingress.kubernetes.io
    matchPolicy: Equivalent
    rules:
      - apiGroups:
          - networking.k8s.io
        apiVersions:
          - v1beta1
        operations:
          - CREATE
          - UPDATE
        resources:
          - ingresses
    failurePolicy: Fail
    sideEffects: None
    admissionReviewVersions:
      - v1
      - v1beta1
    clientConfig:
      service:
        namespace: ingress-nginx
        name: ingress-nginx-controller-admission
        path: /networking/v1beta1/ingresses
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
rules:
  - apiGroups:
      - admissionregistration.k8s.io
    resources:
      - validatingwebhookconfigurations
    verbs:
      - get
      - update
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - secrets
    verbs:
      - get
      - create
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-create
  annotations:
    helm.sh/hook: pre-install,pre-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
spec:
  template:
    metadata:
      name: ingress-nginx-admission-create
      labels:
        helm.sh/chart: ingress-nginx-3.33.0
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 0.47.0
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: create
          image: docker.io/jettech/kube-webhook-certgen:v1.5.1
          imagePullPolicy: IfNotPresent
          args:
            - create
            - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
            - --namespace=$(POD_NAMESPACE)
            - --secret-name=ingress-nginx-admission
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-patch
  annotations:
    helm.sh/hook: post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-3.33.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.47.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
spec:
  template:
    metadata:
      name: ingress-nginx-admission-patch
      labels:
        helm.sh/chart: ingress-nginx-3.33.0
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 0.47.0
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: patch
          image: docker.io/jettech/kube-webhook-certgen:v1.5.1
          imagePullPolicy: IfNotPresent
          args:
            - patch
            - --webhook-name=ingress-nginx-admission
            - --namespace=$(POD_NAMESPACE)
            - --patch-mutating=false
            - --secret-name=ingress-nginx-admission
            - --patch-failure-policy=Fail
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000

2、使用

官网地址：https://kubernetes.github.io/ingress-nginx/

就是nginx做的

https://139.198.163.211:32401/

http://139.198.163.211:31405/

测试环境

应用如下yaml，准备好测试环境

apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello-server
spec:
  replicas: 2
  selector:
    matchLabels:
      app: hello-server
  template:
    metadata:
      labels:
        app: hello-server
    spec:
      containers:
      - name: hello-server
        image: registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/hello-server
        ports:
        - containerPort: 9000
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx-demo
  name: nginx-demo
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx-demo
  template:
    metadata:
      labels:
        app: nginx-demo
    spec:
      containers:
      - image: nginx
        name: nginx
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: nginx-demo
  name: nginx-demo
spec:
  selector:
    app: nginx-demo
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 80
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: hello-server
  name: hello-server
spec:
  selector:
    app: hello-server
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 9000

1、域名访问

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-host-bar
spec:
  ingressClassName: nginx
  rules:
  - host: "hello.atguigu.com"
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: hello-server
            port:
              number: 8000
  - host: "demo.atguigu.com"
    http:
      paths:
      - pathType: Prefix
        path: "/nginx"  # 把请求会转给下面的服务，下面的服务一定要能处理这个路径，不能处理就是404
        backend:
          service:
            name: nginx-demo  ## java，比如使用路径重写，去掉前缀nginx
            port:
              number: 8000

问题： path: “/nginx” 与 path: “/“ 为什么会有不同的效果？

2、路径重写

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /$2
  name: ingress-host-bar
spec:
  ingressClassName: nginx
  rules:
  - host: "hello.atguigu.com"
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: hello-server
            port:
              number: 8000
  - host: "demo.atguigu.com"
    http:
      paths:
      - pathType: Prefix
        path: "/nginx(/|$)(.*)"  # 把请求会转给下面的服务，下面的服务一定要能处理这个路径，不能处理就是404
        backend:
          service:
            name: nginx-demo  ## java，比如使用路径重写，去掉前缀nginx
            port:
              number: 8000

3、流量限制

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-limit-rate
  annotations:
    nginx.ingress.kubernetes.io/limit-rps: "1"
spec:
  ingressClassName: nginx
  rules:
  - host: "haha.atguigu.com"
    http:
      paths:
      - pathType: Exact
        path: "/"
        backend:
          service:
            name: nginx-demo
            port:
              number: 8000

7、存储抽象

环境准备

1、所有节点

1 2	#所有机器安装 yum install -y nfs-utils

2、主节点

#nfs主节点
echo "/nfs/data/ *(insecure,rw,sync,no_root_squash)" > /etc/exports

mkdir -p /nfs/data
systemctl enable rpcbind --now
systemctl enable nfs-server --now
#配置生效
exportfs -r

3、从节点

showmount -e 172.31.0.4

#执行以下命令挂载 nfs 服务器上的共享目录到本机路径 /root/nfsmount
mkdir -p /nfs/data

mount -t nfs 172.31.0.4:/nfs/data /nfs/data
# 写入一个测试文件
echo "hello nfs server" > /nfs/data/test.txt

4、原生方式数据挂载

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx-pv-demo
  name: nginx-pv-demo
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx-pv-demo
  template:
    metadata:
      labels:
        app: nginx-pv-demo
    spec:
      containers:
      - image: nginx
        name: nginx
        volumeMounts:
        - name: html
          mountPath: /usr/share/nginx/html
      volumes:
        - name: html
          nfs:
            server: 172.31.0.4
            path: /nfs/data/nginx-pv

1、PV&PVC

PV：持久卷（Persistent Volume），将应用需要持久化的数据保存到指定位置

PVC：持久卷申明（Persistent Volume Claim），申明需要使用的持久卷规格

1、创建pv池

静态供应

#nfs主节点
mkdir -p /nfs/data/01
mkdir -p /nfs/data/02
mkdir -p /nfs/data/03

创建PV

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv01-10m
spec:
  capacity:
    storage: 10M
  accessModes:
    - ReadWriteMany
  storageClassName: nfs
  nfs:
    path: /nfs/data/01
    server: 172.31.0.4
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv02-1gi
spec:
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteMany
  storageClassName: nfs
  nfs:
    path: /nfs/data/02
    server: 172.31.0.4
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv03-3gi
spec:
  capacity:
    storage: 3Gi
  accessModes:
    - ReadWriteMany
  storageClassName: nfs
  nfs:
    path: /nfs/data/03
    server: 172.31.0.4

2、PVC创建与绑定

创建PVC

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: nginx-pvc
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 200Mi
  storageClassName: nfs

创建Pod绑定PVC

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx-deploy-pvc
  name: nginx-deploy-pvc
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx-deploy-pvc
  template:
    metadata:
      labels:
        app: nginx-deploy-pvc
    spec:
      containers:
      - image: nginx
        name: nginx
        volumeMounts:
        - name: html
          mountPath: /usr/share/nginx/html
      volumes:
        - name: html
          persistentVolumeClaim:
            claimName: nginx-pvc

2、ConfigMap

抽取应用配置，并且可以自动更新

1、redis示例

1、把之前的配置文件创建为配置集

1 2	# 创建配置，redis保存到k8s的etcd； kubectl create cm redis-conf --from-file=redis.conf

apiVersion: v1
data:    #data是所有真正的数据，key：默认是文件名   value：配置文件的内容
  redis.conf: |
    appendonly yes
kind: ConfigMap
metadata:
  name: redis-conf
  namespace: default

2、创建Pod

apiVersion: v1
kind: Pod
metadata:
  name: redis
spec:
  containers:
  - name: redis
    image: redis
    command:
      - redis-server
      - "/redis-master/redis.conf"  #指的是redis容器内部的位置
    ports:
    - containerPort: 6379
    volumeMounts:
    - mountPath: /data
      name: data
    - mountPath: /redis-master
      name: config
  volumes:
    - name: data
      emptyDir: {}
    - name: config
      configMap:
        name: redis-conf
        items:
        - key: redis.conf
          path: redis.conf

3、检查默认配置

kubectl exec -it redis -- redis-cli

127.0.0.1:6379> CONFIG GET appendonly
127.0.0.1:6379> CONFIG GET requirepass

4、修改ConfigMap

apiVersion: v1
kind: ConfigMap
metadata:
  name: example-redis-config
data:
  redis-config: |
    maxmemory 2mb
    maxmemory-policy allkeys-lru

5、检查配置是否更新

kubectl exec -it redis -- redis-cli

127.0.0.1:6379> CONFIG GET maxmemory
127.0.0.1:6379> CONFIG GET maxmemory-policy

检查指定文件内容是否已经更新

修改了CM。Pod里面的配置文件会跟着变

*配置值未更改，因为需要重新启动 Pod 才能从关联的 ConfigMap 中获取更新的值。*

*原因：我们的Pod部署的中间件自己本身没有热更新能力*

3、Secret

Secret 对象类型用来保存敏感信息，例如密码、OAuth 令牌和 SSH 密钥。将这些信息放在 secret 中比放在 Pod 的定义或者容器镜像中来说更加安全和灵活。

kubectl create secret docker-registry leifengyang-docker \
--docker-username=leifengyang \
--docker-password=Lfy123456 \
--docker-email=534096094@qq.com

##命令格式
kubectl create secret docker-registry regcred \
  --docker-server=<你的镜像仓库服务器> \
  --docker-username=<你的用户名> \
  --docker-password=<你的密码> \
  --docker-email=<你的邮箱地址>



apiVersion: v1
kind: Pod
metadata:
  name: private-nginx
spec:
  containers:
  - name: private-nginx
    image: leifengyang/guignginx:v1.0
  imagePullSecrets:
  - name: leifengyang-docker
